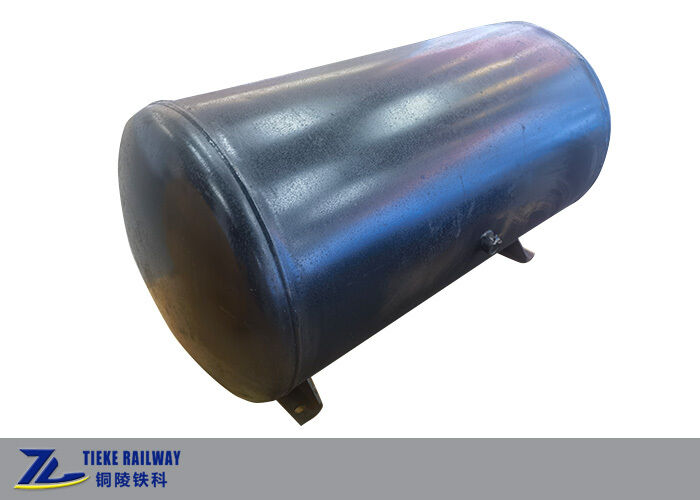

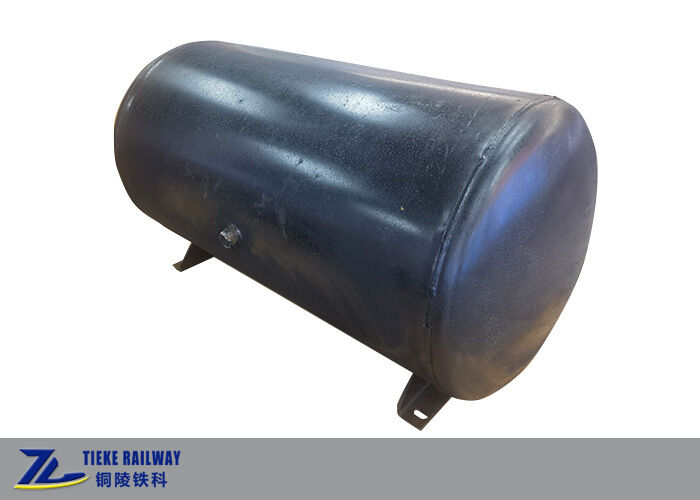

Name: 160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Railway Pneumatic System
Brand: Tongling Tieke Railway Equipment Co.,Ltd
SKU: 160L
Price: 600.00 USD
Availability: InStock

Rumah > Produk > Bagian Rem Udara >

160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Railway Pneumatic System

160L railroad air receiver

welded main air reservoir

railway pneumatic system receiver

Tempat asal:

Cina

Nama merek:

OEM Customized

Sertifikasi:

TB/T 304-2018, TB/T 1900-2016, EN 286-3

Nomor model:

160L

Hubungi Kami

Minta Kutipan

160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Railway Pneumatic System

Rincian produk

Volume nominal:

160 Liter

Nilai tekanan kerja:

0,6 MPa (600 kPa); Opsional 0,8 MPa (800 kPa) untuk penggunaan lokomotif

Tekanan uji hidrostatik:

0,9 MPa, pertahankan tekanan selama 5 menit tanpa kebocoran dan deformasi

Kisaran Suhu Kerja:

-50 C ~ +70 C

Bahan Utama:

Baja Bejana Tekanan Kereta Api Q345R / Baja Tahan Karat / Paduan Aluminium (opsional)

Tipe Struktur:

Struktur Silinder Dilas Horisontal dengan Lug Pemasangan & Sumbat Pembuangan

Kinerja Ketat Udara:

Tidak ada kebocoran udara di bawah tekanan kerja terukur

Standar Kepatuhan:

TB/T 304-2018, TB/T 1900-2016, EN 286-3

Ruang Lingkup Aplikasi:

Lokomotif Kereta Api, Gerobak Barang, Gerbong Penumpang, Kendaraan Rekayasa Kereta Api, Kendaraan Ke

Syarat Pembayaran & Pengiriman

Kuantitas min Order

10 buah

Harga

USD 300-900 / Piece

Kemasan rincian

Kotak karton dengan blok pemosisian busa khusus berwarna putih di dalamnya

Waktu pengiriman

15-30 hari untuk produksi, 3-7 hari untuk stok

Syarat-syarat pembayaran

T/T, L/C, Western Union

Menyediakan kemampuan

500 buah per bulan

Produk terkait

Double Chamber Air Tank Air Receiver Compact Integrated Air Tank for Railway Freight Wagon

Dapatkan Harga Terbaik

160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Brake System

Dapatkan Harga Terbaik

Dual Compartment Welded Railway Air Reservoir 11*17 for Freight Wagon Brake System

Dapatkan Harga Terbaik

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use

Dapatkan Harga Terbaik

Hubungi Kami

86-562-2882588

Hubungi Sekarang

Deskripsi Produk

160L High Volume Welded Main Air Reservoir Railroad Air Receiver Product Overview Our 160L compressed air reservoir is a heavy-duty compressed air tank and compressed air receiver built exclusively for railway pneumatic systems. Unlike standard industrial air tanks, it is engineered to withstand continuous vibration, pressure fluctuation and harsh outdoor railway operating conditions. This high-capacity compressed air receiver stores standby compressed air, stabilizes system
