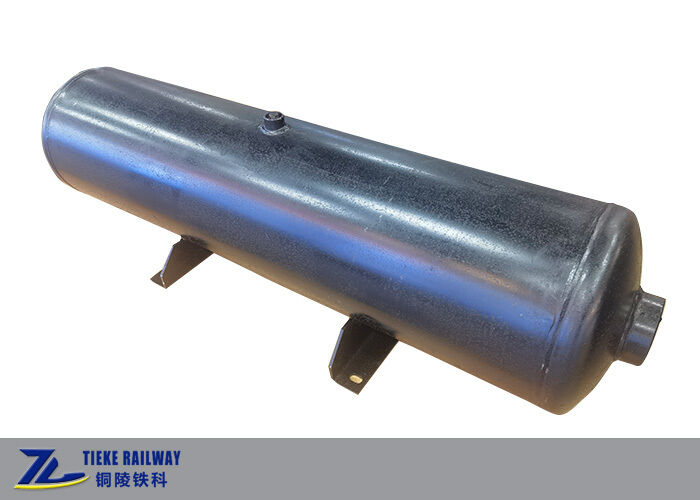

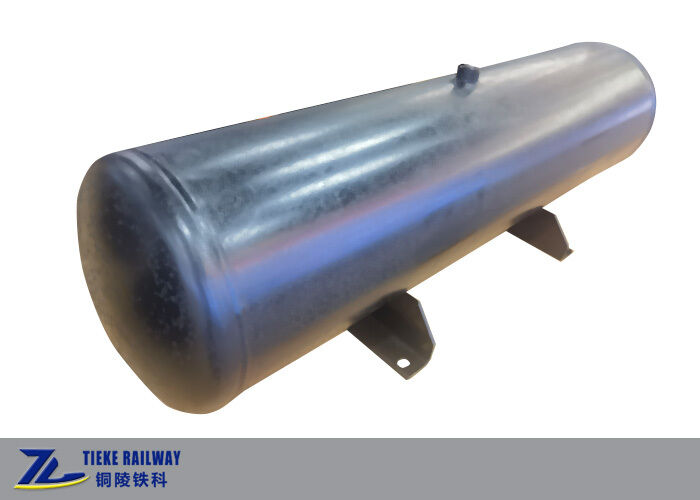

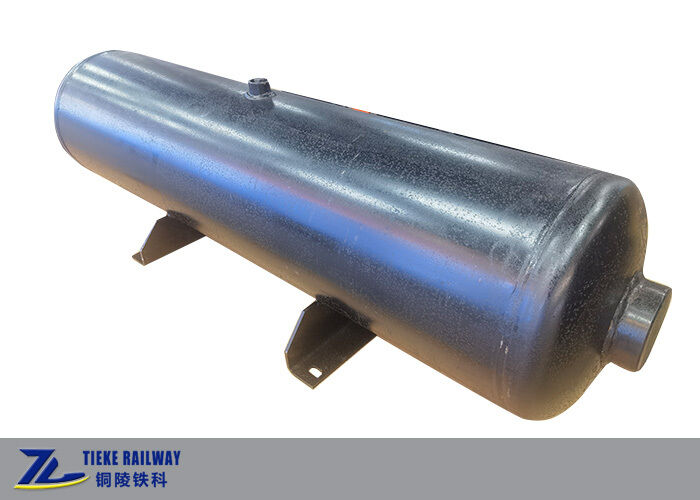

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use

78L railway brake air tank

railway air receiver tank

industrial air brake tank

Tempat asal:

Cina

Nama merek:

OEM Customized

Sertifikasi:

International Pressure Vessel Standard

Nomor model:

78L

Hubungi Kami

Minta Kutipan

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use

Rincian produk

Volume nominal:

78 Liter

Nilai tekanan kerja:

0,9 MPa (9 Bar)

Tekanan uji hidrolik:

1,35 MPa, penahan tekanan 5 menit, tidak ada deformasi

Kinerja Ketat Udara:

Nol kebocoran dan tidak ada penurunan tekanan di bawah tekanan kerja terukur

Bahan Utama:

Baja Bejana Tekanan Q245R / Q345R

Kisaran Suhu Kerja:

-40 C ~ +70 C

Tipe Struktur:

Tangki ruang tunggal horizontal dengan kepala elips, kekakuan struktural tinggi

Standar Pengelasan & Pengujian:

Pengelasan penetrasi penuh, pengujian non-destruktif RT/MT

Standar Antarmuka:

Benang G standar, benang internasional NPT/BSPP yang dapat disesuaikan

Perawatan permukaan:

Penghilang karat sandblasting + primer anti karat epoksi + lapisan atas tahan cuaca

Aplikasi inti:

Lokomotif kereta api & sistem rem gerbong barang, stasiun udara bertekanan industri, mesin tekni

Syarat Pembayaran & Pengiriman

Kuantitas min Order

10 buah

Harga

USD 150-500 / Piece

Kemasan rincian

Kotak karton dengan blok pemosisian busa khusus berwarna putih di dalamnya

Waktu pengiriman

15-30 hari untuk produksi, 3-7 hari untuk stok

Syarat-syarat pembayaran

T/T, L/C, Western Union

Menyediakan kemampuan

500 buah per bulan

Produk terkait

Double Chamber Air Tank Air Receiver Compact Integrated Air Tank for Railway Freight Wagon

Dapatkan Harga Terbaik

160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Brake System

Dapatkan Harga Terbaik

Dual Compartment Welded Railway Air Reservoir 11*17 for Freight Wagon Brake System

Dapatkan Harga Terbaik

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use

Dapatkan Harga Terbaik

Hubungi Kami

86-562-2882588

Hubungi Sekarang

Deskripsi Produk

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use Product Overview This multifunctional railway air tank, also widely known as brake air tank and air receiver tank, is a high-pressure certified pressure vessel tailored for railway transit equipment and heavy-duty industrial pneumatic systems. Combining professional brake system safety design and industrial air storage & pressure stabilization functions, the 78L tank acts as a core air source buffer and
