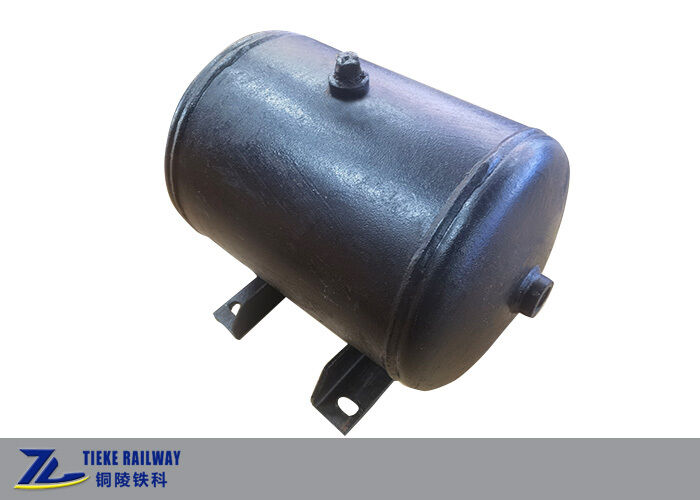

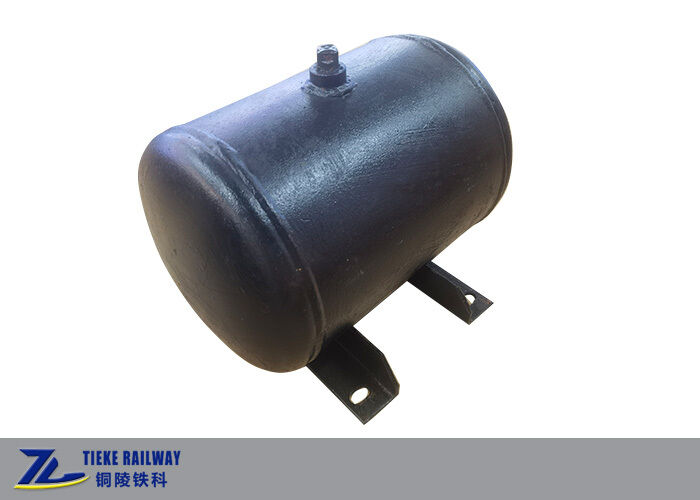

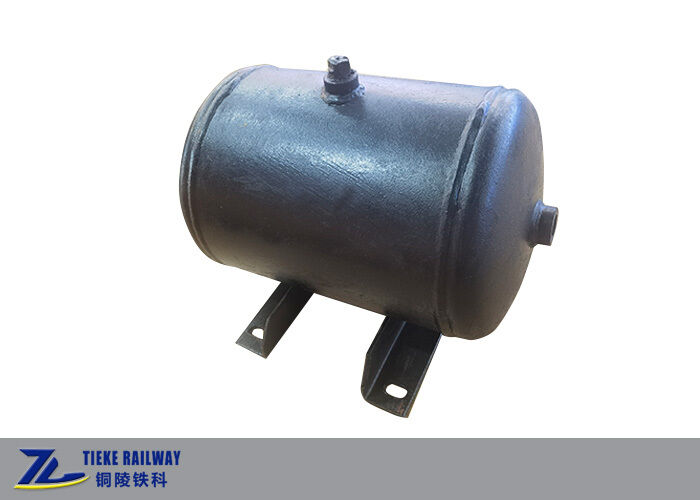

17L Pressure Reducing Reservoir Railway Pressure Reduce Tank Pressure Reducing Air Cylinder

17L railway pressure reducing reservoir

pressure reducing air cylinder

railway air brake parts

Tempat asal:

Cina

Nama merek:

OEM Customized

Sertifikasi:

Railway TB Pressure Vessel Standard

Nomor model:

17L

Hubungi Kami

Minta Kutipan

17L Pressure Reducing Reservoir Railway Pressure Reduce Tank Pressure Reducing Air Cylinder

Rincian produk

Volume nominal:

17L

Diameter Luar Barel:

250mm

Panjang Keseluruhan:

Kira-kira. 420 mm (termasuk kepala elips, tidak termasuk braket pengangkat)

Ketebalan Pelat Baja:

Pelat baja bejana tekan 4,0 mm

Berat Bersih:

Kira-kira. 42 kg (40-44 kg, tanpa cat)

Tekanan Kerja:

500 kPa

Tekanan uji hidrostatik:

750 kPa

Standar Antarmuka:

2 buah konektor pipa samping G1/2, sumbat pembuangan berulir bawah

Sistem yang berlaku:

Sistem rem tiga katup GK kereta api, perangkat pengatur beban kosong

Standar Eksekusi:

Spesifikasi bejana tekan TB Kereta Api

Syarat Pembayaran & Pengiriman

Kuantitas min Order

10 buah

Harga

USD 100-600 / Piece

Kemasan rincian

Kotak karton dengan blok pemosisian busa khusus berwarna putih di dalamnya

Waktu pengiriman

15-30 hari untuk produksi, 3-7 hari untuk stok

Syarat-syarat pembayaran

T/T, L/C, Western Union

Menyediakan kemampuan

500 buah per bulan

Produk terkait

Double Chamber Air Tank Air Receiver Compact Integrated Air Tank for Railway Freight Wagon

Dapatkan Harga Terbaik

160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Brake System

Dapatkan Harga Terbaik

Dual Compartment Welded Railway Air Reservoir 11*17 for Freight Wagon Brake System

Dapatkan Harga Terbaik

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use

Dapatkan Harga Terbaik

Hubungi Kami

86-562-2882588

Hubungi Sekarang

Deskripsi Produk

17L Pressure Reducing Reservoir Railway Pressure Reduce Tank Pressure Reducing Air Cylinder Product Overview The 17L Pressure Reducing Reservoir , also known as railway pressure reduce tank and pressure reducing air cylinder, is a core pressure regulating component specially designed for traditional GK triple valve brake systems of railway freight wagons, including old-type covered wagons and open-top wagons. Cooperating with the empty-load cut-out cock and empty-load
