13B AAR Train Car Coupler

Grade E Cast Steel Draft Gear

Friction Spring Buffer Assembly

Tempat asal:

Cina

Nama merek:

Tieke

Sertifikasi:

TB/T 456, AAR M-101

Nomor model:

13B

Hubungi Kami

Minta Kutipan

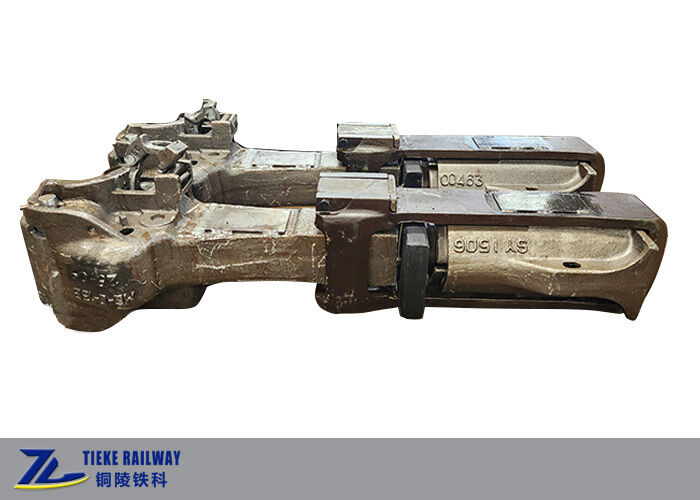

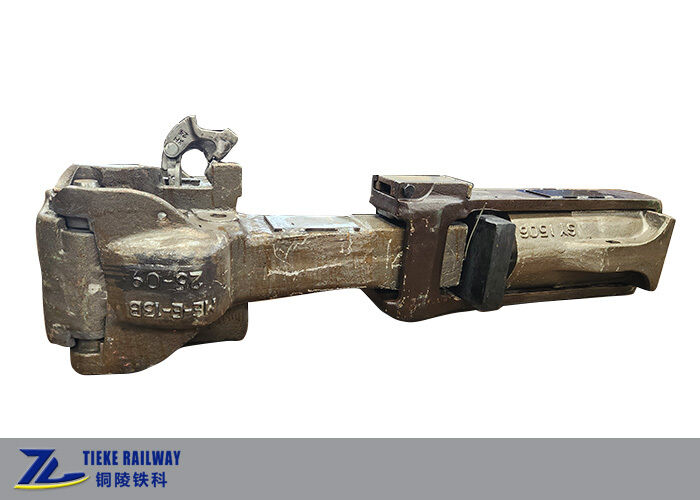

13B Railway Train Car Coupler Draft Gear Assembly Grade E Cast Steel with Yoke

Rincian produk

nama:

Coupler Gerbong Kereta 13B dan Rakitan Roda Gigi Draft untuk Gerbong Pengangkutan Beban Berat

Aplikasi:

Gerobak barang muatan berat standar Cina

Bahan:

Kelas baja tuang E

Pertukaran:

13, 13A penggandeng

Min. kegagalan Beban tubuh coupler:

4005 kN

Min. Min. failure load of Coupler knuckle beban kegagalan buku jari Coupler<:

3430 kN

Jarak Bebas Coupler:

11,5 mm

Fitur Kopling:

Dapat dihubungkan dengan coupler tipe 16, 17, AAR E, E/F dan F

Jenis roda gigi draft:

Penyangga pegas gesekan MT-2

Standar:

TB/T 456

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Bisa dinegosiasikan

Harga

negotiable

Kemasan rincian

Kasus Kayu Atau Pallet

Waktu pengiriman

1-2 bulan

Syarat-syarat pembayaran

T/T,L/C

Menyediakan kemampuan

5000 set per tahun

Produk terkait

CA-3 Railway Automatic Coupler Head SA-3 Hook Buffer for Russian Freight Cars

Dapatkan Harga Terbaik

No.15 Railway Passenger Car Automatic Coupler TB T3046 Lower Acting Cast Steel

Dapatkan Harga Terbaik

Bagian Roda Gigi Draft Coupler Kereta Api Penempaan Yoke Coupler

Dapatkan Harga Terbaik

Penyangga Coupler Tipe ST, Gerobak Pengangkutan Kereta Api Beban Berat

Dapatkan Harga Terbaik

Hubungi Kami

86-562-2882588

Hubungi Sekarang

Deskripsi Produk

13B Railway Train Car Coupler and Draft Gear Assembly The 13B coupler was developed on the base of the 13A coupler and has been widely used in Chinese railway heavy load freight cars since 2007. It is made of E grade low alloy cast steel, with a coupler body minimum failure load of 4005 kN and a coupler knuckle minimum failure load of 3430 kN. The coupling clearance is 11.5 mm, which significantly improves the longitudinal dynamic performance of the train. 13B couplers are
